Basic Info.

Model NO.	PT4-3-PE
Rated Impulse Voltage	8kv
Conductor Cross Section Flexible	0.2-4mm²
Rated Cross Section	24-10AWG
Stripping Length	10-12mm
Conductor Cross Section Solid	0.2-6mm²
Number of Connectiones	3p
Transport Package	Export Carton
Trademark	SMICO
Origin	China
HS Code	85369090
Production Capacity	10000000

Product Description

About SMICO Spring Terminal Blocks
1. SMICO spring terminal block has front wiring, side wiring and 45° wiring form
2. The wiring steps of the spring terminal: insert the tool - insert the wire with the stripped insulation layer - pull out the tool, the wire is automatically clamped.
3. The SMICO spring terminal can automatically adjust the clamping force according to the wire diameter of the wire, and the same quality can be achieved regardless of whether the operator is skilled or not.
4. The contacts of the SMICO spring terminal block can be airtight, the contact resistance is small, anti-corrosion, vibration resistance, stamping resistance, shorten the maintenance time and prolong the maintenance period.
Spring terminals do not require frequent inspection or retightening of terminals that have become loose due to disturbances, temperature cycling, or broken strands. The inherent reliability of spring terminals reduces downtime and user repairs. According to statistics, 35-50% of equipment maintenance is due to bad contacts. Considering the high cost of maintenance and lost production time, this savings is significant.
For the purpose of safety, reliability and ease of troubleshooting, many industry and national standards specify "one wire per tightening point".
SMICO spring terminal blocks can provide users with terminals for two-wire, three-wire, and four-wire contacts. The same jumper bridge applied to the upper insulation can easily connect adjacent or spaced terminals together. In both cases, each wire has its own contact clamp, and due to the front wiring feature, it does not require the larger space of a two-wire terminal.
The spring clamp has been designed to give proportional tightening force according to the wire size. The thicker the wire diameter, the greater the clamping force. The flat surface area of the spring in combination with the deflector bar with a special curved surface provides a secure connection that does not damage the wire. At the same time, the special design of the spring angle, when the pulling force is applied, also increases the clamping force.
SMICO spring terminal blocks and connectors have a complete wire entry, which can be tightly clamped to the wire. The shell design of the product, combined with the unique properties of the spring, can ensure that the wire is automatically positioned in the contact area, which can effectively prevent the stranded wire from unraveling.
Comparison of spring clamping and screw clamping

The SMICO terminal has confirmed to many customers the actual use of the terminal. Taking manual wiring as an example, the spring-clamped terminal is more than 45% less used than the screw-type terminal. Even when compared with an electric screwdriver, the spring clamping still has the advantage of saving time. (In many applications, wire preparation, such as crimping wire ends, cold splices, or tinning, saves even more time.) The screw-clamping link is "completely operator-dependent", i.e. the screw-clamped The degree of tightness requires the operator's judgment. This may be more or less controlled with the operator's specific torque screwdriver's factory setting. When wiring in the field, it is more difficult to ensure the proper degree of screw clamping. The spring auto-clamping feature allows less skilled operators to complete joints with high quality. Accurate and consistent contact connections can be completed no matter who is operating. The tool used is just a standard screwdriver.

Technical Data
SMICO ID	TP4-3-PE
Material	PA66
Pitch	6.2mm
Number of levels	1
Number of connections	3P
Connection method	Push in spring type terminal
Protection Level	IP20
Work temperature	-40~+105ºC
Rated Current	/
Rated Voltage	/
Overvoltage category	III
Pollution degree	3
Rated impulse voltage	8KV
Conductor cross section solid	0.2-6mm²
Conductor cross section flexible	0.2-4mm²
Conductor cross section flexible,with furrule	0.2-4mm²
Stripping length	10-12mm
Rated cross section	24-10AWG
Brand	SMICO

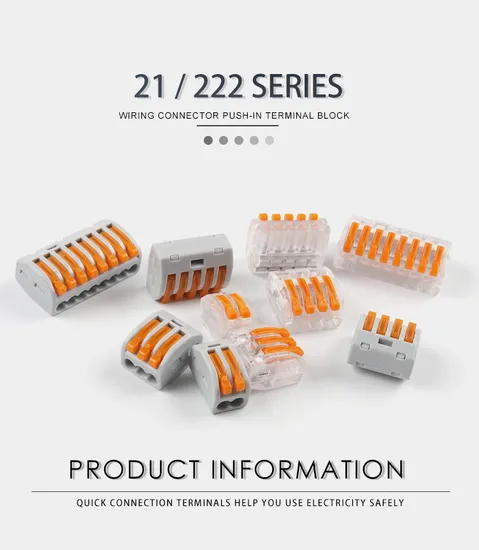

Push-in Terminal Block Screwless Interlocking

Zhejiang Smico Electric Power Equipment Co.,Ltd. Located in Liushi Town,Yueqing City,the China Electrical City. Have conveniently
traffic 25km respectively from Wenzhou airport and railway station,and 5km from 104 national road freeway.
We specialized in manufacturing Aerial electrical fittings,Cable and wire terminal,Power
connectors,Insulator,Arrester,Switch.Since we founded,we insisted to carry on the strategy to provide the top quality
products,competitive price,perfect after-sale service,prompt new products developing to satisfy customers' demand. Therefore,our
products have gained a strong reputation throughout the Europe,Noth American,South American,Middle East and Southeast Asia,etc.
As we strive to hold on our promise of "Human Oriented,Technology Advanced",we make hard effort to increase our global market
presence. We strictly produce the goods accordance with the ISO9001,and most of for our products have the CE and CB certificate.
We will improve ourselves all the time and sincerely invite you who interested in our products to develop the business together.We
are always your electrical friends.
