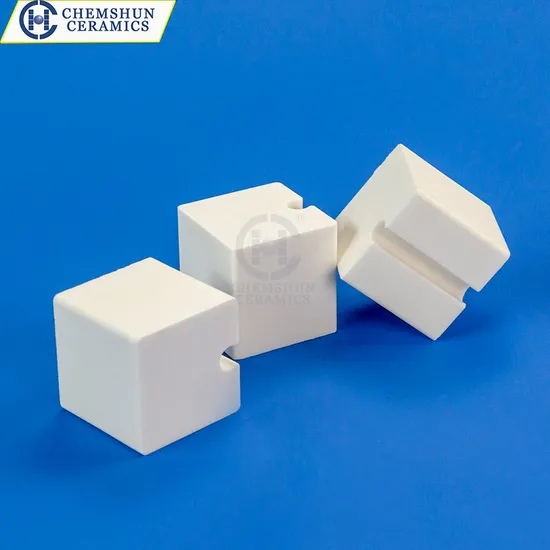

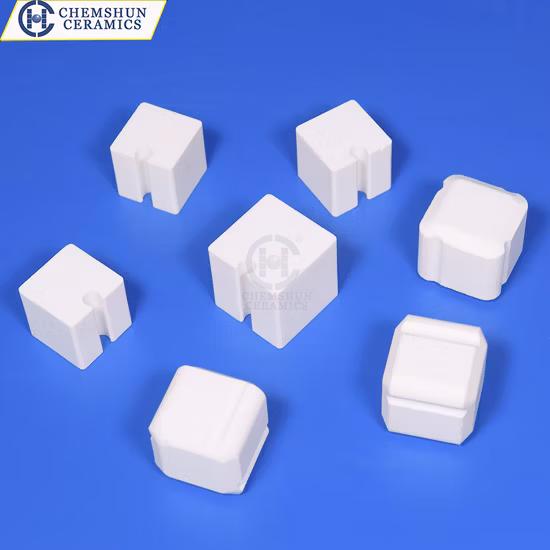

Inregular Ceramic Products 92% Al2O3 Ceramic Interlocking Blocks for Ceramic Rubber Liner

Overview

Basic Info.

Model NO.	Inregular Ceramic Tiles
Density	3.60 g/cm3
Fracture Toughness Kic Mpam 1/2	3.2
Wear Volume	0.25 Cm3
Compression Strength MPa	1050
Bending Strength MPa	220
Ceramic Block	40X40X40mm, 45X45X50mm,32X32X22mm, 38X38X38mm,etc.
Dimple Tiles	20X20X4-10+1(with 5 Dimples), 20X30X5~15+1(with 18
Al2O3	92%
Ceramic Cylinder/Rod	6X6mm,15X15mm,20X20mm, 31X31mm,40X40mm, 45X50mm, 5
Ceramic Plate	100X100X6~50mm, 150X100X6~50mm, etc.
Hexagonal Tile	S12.5xt3~20mm, S23.5xt6-25mm
Square Tile	10X10X3~10mm, 17.5X17.5X3~15mm, 20X20X3~15mm, etc.
Transport Package	Box
Specification	customized size
Trademark	firstar
Origin	China
HS Code	6909120000
Production Capacity	400t/Month

Product Description

Inregular Ceramic Products 92% Al2O3 Ceramic Interlocking Blocks for Ceramic Rubber Liner

1. Detailed description

The Ceramic tiles is a high-performance abrasion and impact resisting linings for high-impact, high-pressure applications in which ceramic tile may not have sufficient structural resistance, and high-performance rubber may not offer the required wear life. In extreme applications, the Cube liners can be installed in a matrix or abrasion resistant steel plate to provide structural support for the ceramic/rubber matrix and provide exceptional wear life where competing products cannot.Used in heavy industry for years as a cost-effective, wear-resistant solution, these lightweight materials offer high durability, strength, and excellent abrasion and corrosion resistance. Alumina wear resistant compositions include:l Alumina 92: most common wear product with great wear resistancel Alumina 95: increased wear performancel Alumina T95: premium alumina for best wear resistancel Zirconium toughened alumina(ZTA): increased strength and impact resistance2.Product features:> High hardness > Superior abrasion and impact resistance > Corrosion and chemical resistance > Light weight > Easy installation by epoxy resin or bolt > Improve your working environment-noise, vibration and safety3. Product Specification:- Square tile: 10x10x3~10mm, 17.5x17.5x3~15mm, 20x20x3~15mm, etc.- Ceramic Plate: 100x100x6~50mm, 150x100x6~50mm, etc.- Hexagonal tile: S12.5xT3~20mm, S23.5xT6-25mm- Dimple tiles: 20x20x4-10+1(with 5 dimples), 20x30x5~15+1(with 18 dimples), 20x20x5-10mm( with 13 dimples)- Ceramic Block: 40x40x40mm, 45x45x50mm,32x32x22mm, 38x38x38mm,etc.- Ceramic Cylinder/rod: 6x6mm,15x15mm,20x20mm, 31x31mm,40x40mm, 45x50mm, 50x50mm etc.5. Ceramic wear lining tiles for a variety of applications:Processing equipment:l Pharmaceutical clean roomsl Food processing plantsl Grain handlingl Mineral processingl Cement manufacturingl Chemical processingl Large Cyclones:l Coal-fired power plantsl Steel Millsl Asphalt Plantsl Petrochemical plantsl Pulp and paper millsDetailed Photos

Inregular Ceramic Products 92% Al2O3 Ceramic Interlocking Blocks for Ceramic Rubber Liner

Product Parameters

Category	HC90	HC92	HC95	HCT95	HC99	HC-ZTA	ZrO2
Al2O3	≥90%	≥92%	≥95%	≥ 95%	≥ 99%	≥75%	/
ZrO2	/	/	/	/	/	≥21%	≥95%
Density	>3.50g/ cm3	>3.60g/cm3	>3.65g/cm3	>3.70g/cm3	>3.83g/cm3	>4.10g/cm3	>5.90g/cm3
HV 20	≥900	≥950	≥1000	≥1100	≥1200	≥1350	≥1100
Rock Hardness HRA	≥80	≥82	≥85	≥88	≥90	≥90	≥88
Bending Strength MPa	≥180	≥220	≥250	≥300	≥330	≥400	≥800
Compression strength MPa	≥970	≥1050	≥1300	≥1600	≥1800	≥2000	/
Fracture Toughness KIc MPam 1/2	≥3.5	≥3.7	≥3.8	≥4.0	≥4.2	≥4.5	≥7.0
Wear Volume	≤0.28 cm3	≤0.25cm3	≤0.20cm3	≤0.15cm3	≤0.10 cm3	≤0.05cm3	≤0.02cm3

Company Profile

Qimingxing offer quality wear and Ant- impact ceramics, in combination with our experienced and competent staff, ensure the increased efficiency and service life of all equipments and materials to which they are applied. - Established Ultrafine Energy Efficiency Technology Research Institute - Increase lifespan of wearable parts - New improved technology and products - Minimal downtime to minimize delays in production - Variety of wear combating options available as a one stop solution - Strong focus on product innovation supported by Chinese Academy of Sciences. - Customized application techniques to suite any wear problem

Certifications

Inregular Ceramic Products 92% Al2O3 Ceramic Interlocking Blocks for Ceramic Rubber Liner

Packaging & Shipping

Inregular Ceramic Products 92% Al2O3 Ceramic Interlocking Blocks for Ceramic Rubber Liner

OTHER HOT SALE

More Abrasion ceramics products : abrasion ceramics , Alumina ceramics , wear resistant ceramics , alumina pipe liner , ceramic tube , alumina cylinder pipe , wear resistant alumina plate , abrasion ceramic tile , abrasive alumina sheet , friction plain tile , abrasion weldable tile , rubber backed ceramic liner , ceramic composite linings , alumina mosaic sheet , ceramic taper tile for pipe sleeve , ceramic ladder tile for pipe steel , engineering ceramics equipment , pre-fabricated pipe sleeve ,wear resistant bending pipe , abrasion materials

FAQ
FAQQ: What is your experience in your products?
A: We have 22 years experience in this industry line. We are professional manufacturer in this area. Q: What is your MOQ?
A: The MOQ is different as per different products, for example, 1 Ton for ceramic ball. Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first
Q: Can you provide free sample?
A: Yes, within 1kg. Q: What is your production time?
A: We have large stock for standard products. Normally within 7-10days after receipt the deposit. Q: What are your payment terms?
A: T/T, L/C, Western Union
